70/30 Beamsplitter
| Item No.: | RT7030D |
Supplier Details
Country: Taiwan
City: TAINAN CITY 709
Address: NO.59,KEJI 5TH TD.ANNAN DISTRICT
TEL: +886-6-3841411
Fax: +886-6-3841409
Online Showroom:
21 Products
Beamsplitter:
Allows the laser / video / light into two, can penetrate 30%, 70% reflection, to multi-layer film deposition from, non-metallic film, the absorption rate is very low.
【Application】
Optical recognition system equipment
Broadband Beamsplitter Plates 70-30 on Sodalime glass
Allows the laser / video / light into two, can penetrate 30%, 70% reflection, to multi-layer film deposition from, non-metallic film, the absorption rate is very low.
【Application】
Optical recognition system equipment
Broadband Beamsplitter Plates 70-30 on Sodalime glass
| Material | Broadband Beamsplitter Plates 70-30 on Sodalime glass |
| Incident Angle | 45° |
| Surface Quality | 60/40 scratch and dig |
| Ref Wavelength | 420 ～ 680 (nm) |

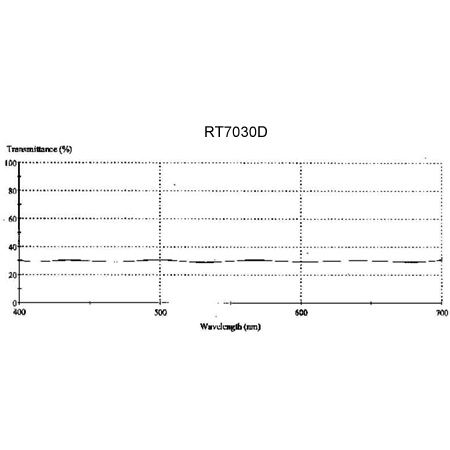

| T ave/ R ave | (Shown on the drawing) |
| Item | Size | Qty | Total Price | Paypal |
| ① | Rectangles : 423 × t1.1 (±0.2) mm | 10 pcs | USD $3230 | ◇ |
| ② | Diameter : ∅460 × t1.1 (±0.2) mm | 10 pcs | USD $7320 |
