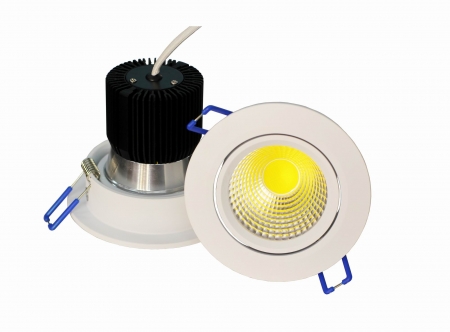

6W COB LED Downlight
| Item No.: | EW-CL-COB-6W-WW |
Supplier Details
Country: China
City: Shenzhen
Address: Tong'an Hengye Building,NO3 of Tianxin Blvd,Shiyan Town,Baoan District,Shenzhen,China
TEL: +86-755-36863926
Fax: +86-755-82780858
Online Showroom:
30 Products
6W COB LED Downlight
Products Features:
(1)LED Power: 6W.
(2)Lamp Consumption:7.5W.
(3)Output: 540-600lm.
(4)Input voltage:100-240v AC, 50-60hz
(5)Beam Angle:30°/60°
(6)CRI:> 80.
(7)Working Temperature:-40℃-45℃.
(8)Storage Temperature: -25℃-65℃.
(9)Color of housing: white, black, silver.
(10)Life span: 50,000+hrs.
(11)Certificate: CE/RoHS/SASO
(12)Warranty: 3 years.
COB Parameter:
(1)PCB: Ceramic.
(2)Chip Brand: Epistar 10*23.
(3)Output: 600-700lm.
(4)Chip Qty: 96 pcs.
(5)CRI> 82.
(6)Voltage:18-20vDC
(7)Current: 320-350mA.
Driver Parameter:
(1)Brand: Lifud (LED Friend).
(2)Input:100-240v AC.
(3)Output: 15-21vDC, 320mA.
(4)Power effect: 0.5-0.6.
(5)Power Efficiency: 80%
(6)Certificate:CE/CQC/RoHS
Dimmable: Triac or Dali is available.
Meanwell APC-12-350 is optional.
Product Datasheet:
Part No. Color CCT Output EW-CL-COB-6W-WW warm white 2900-3200k 540-560lm EW-CL-COB-6W-NW natural white 4000-4500k 550-580lm EW-CL-COB-6W-CW cool white 5900-6300k 560-600lm
Dimension:
IES Test:(please contact us to get the IES file)
Packing:
