Microarray Reader
| Item No.: | 5-6,PlateLyzer Elite |
Supplier Details
Country: Taiwan
City: Hsinchu City 30075
Address: No. 6, Industry East Road 3, Science Based Industrial Park
TEL: +886-3-5772155
Fax: +886-3-5772598
Online Showroom:
55 Products

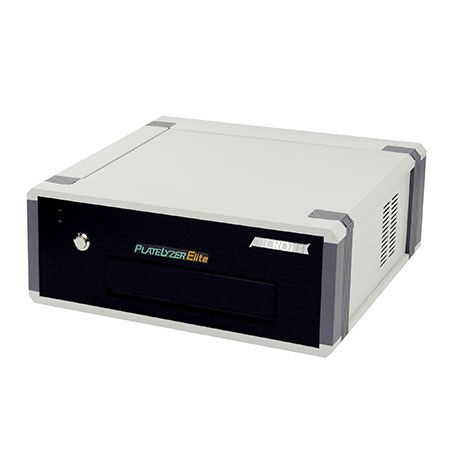

Microarray Imaging Reader – Compact and Lightweight
Microtek’s PlateLyzer Elite is a microarray scanner specifically designed for detecting microarray biochips. Compact in size and easily portable, it is equipped with a high-sensitivity CMOS camera that accurately captures images of biological samples, providing high-quality images with a wide range of optical density. This capability is utilized for reading microarray biochips within well plates and conducting experiments and research on multiplex diagnostics.
Through the MiBio-Probe scanning and analysis software, users can effortlessly conduct tests, analyze data, and interpret results for a variety of biological samples. The results can be stored in report format for future retrieval, supporting related research and applications. PlateLyzer Elite serves as a comprehensive solution provided by Microtek for applications in the field of biology and research.
PlateLyzer Elite is suitable for use in biomedical laboratories, testing facilities, and specialized testing institutions. It offers a time-saving, high-throughput, and high-quality solution for various applications such as basic research, drug development, clinical diagnosis, pathogen identification, disease screening, and more. This contributes to the advancement of the biotech industry. Whether in academic research or industrial applications, PlateLyzer Elite plays a key role in driving the progress of biotechnology.
Features
Specifications
Camera：5 MP, CMOS
Resolution：7.3 um per pixel (3472 dpi)
Light Source：LED
Capture Modes： Transparent / Reflective
Vessels：96-well plate / 4 microscope slides
Scan Speed：150 sec (96-well plate)
Image Formats：48-bit / 24-bit TIFF Color
Connectivity：USB 2.0
Dimensions：390 x 372 x 152 mm
Weight：7.5 kg
OS Support：Windows
Microtek’s PlateLyzer Elite is a microarray scanner specifically designed for detecting microarray biochips. Compact in size and easily portable, it is equipped with a high-sensitivity CMOS camera that accurately captures images of biological samples, providing high-quality images with a wide range of optical density. This capability is utilized for reading microarray biochips within well plates and conducting experiments and research on multiplex diagnostics.
Through the MiBio-Probe scanning and analysis software, users can effortlessly conduct tests, analyze data, and interpret results for a variety of biological samples. The results can be stored in report format for future retrieval, supporting related research and applications. PlateLyzer Elite serves as a comprehensive solution provided by Microtek for applications in the field of biology and research.
PlateLyzer Elite is suitable for use in biomedical laboratories, testing facilities, and specialized testing institutions. It offers a time-saving, high-throughput, and high-quality solution for various applications such as basic research, drug development, clinical diagnosis, pathogen identification, disease screening, and more. This contributes to the advancement of the biotech industry. Whether in academic research or industrial applications, PlateLyzer Elite plays a key role in driving the progress of biotechnology.
Features
- CMOS camera imaging, compact and lightweight design
- Suitable for image analysis in multiplex diagnostics
- Precise imaging control with high stability, suitable for quantitative analysis
- Special optical design for comprehensive capture of well plate bottom images
- Capable of automatic image measurement analysis and report generation
- Allows for simultaneous detection and analysis of multiple targets and analytes in a single assay
- Enables customization of spot detection templates applied to test samples, ensuring the consistency of measurement analysis
- Ability to repeatedly scan the same sample to monitor its changes, beneficial for research analysis
Specifications
Camera：5 MP, CMOS
Resolution：7.3 um per pixel (3472 dpi)
Light Source：LED
Capture Modes： Transparent / Reflective
Vessels：96-well plate / 4 microscope slides
Scan Speed：150 sec (96-well plate)
Image Formats：48-bit / 24-bit TIFF Color
Connectivity：USB 2.0
Dimensions：390 x 372 x 152 mm
Weight：7.5 kg
OS Support：Windows
