Gel Scanner
| Item No.: | 5-4,Bio-5050 |
Supplier Details
Country: Taiwan
City: Hsinchu City 30075
Address: No. 6, Industry East Road 3, Science Based Industrial Park
TEL: +886-3-5772155
Fax: +886-3-5772598
Online Showroom:
55 Products

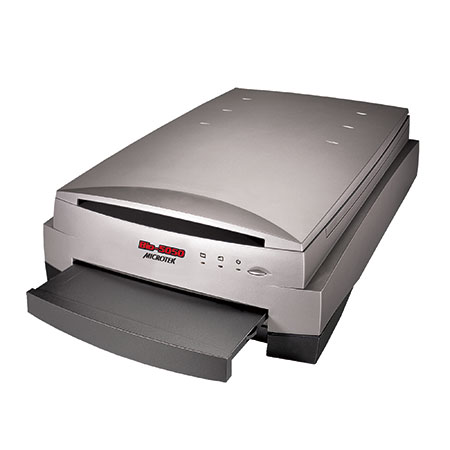

Electrophoresis Gel Digital Imaging System – High Stability
The Bio-5050 scanner from Microtek is specifically designed to capture images of biological samples on electrophoresis gel films. It offers outstanding performance features, including a 48-bit color depth, a high optical resolution of 4800 dpi, an ultra-wide optical density range from 0.01D to 3.4D, high stability performance with a CV value of 0.5%, and an automatic image focusing system. These features enable the Bio-5050 to capture color images of electrophoresis gel films with precision and stability, thereby ensuring the highest scanning quality and image stability.
Additionally, the Bio-5050 provides a key feature that allows users to periodically scan the same gel film, capturing images of the sample at different time points. This results in a continuous series of images showing changes in the sample over time, making it a valuable tool for further time-series analysis and biological research.
In the field of biotechnology, the high efficiency and stability of the Bio-5050 position it as an ideal choice, making it an indispensable component in the digitalization process of electrophoresis experiments.
Features
Specifications
Optical Resolution：4800 dpi (5 um)
Image Sensor Type：CCD
Light Source：LED
Color Modes：8-bit/16-bit grayscale, 8-bit/16-bit RGB color
Scanning Area：Reflective: 8.5" x 14" (216 x 356 mm); Transparency: 8" X 10" (203 x 254 mm)
Scanning Speed：Reflective: <=37 sec @600 dpi; Transparency: <=35 sec @600 dpi
Optical Density Range：0.01D ~ 3.4D (Dmax 3.77)
Consistency：CV (Coefficient of Variation): 0.5% @1D, 1% @2D; R (Relative Range): 1% @1D, 2% @2D
Dimensions：22.3" x 15.2" x 6.2" (567 x 385 x 158 mm)
Weight：26.5 lbs. (12 kg)
OS Support：Windows
The Bio-5050 scanner from Microtek is specifically designed to capture images of biological samples on electrophoresis gel films. It offers outstanding performance features, including a 48-bit color depth, a high optical resolution of 4800 dpi, an ultra-wide optical density range from 0.01D to 3.4D, high stability performance with a CV value of 0.5%, and an automatic image focusing system. These features enable the Bio-5050 to capture color images of electrophoresis gel films with precision and stability, thereby ensuring the highest scanning quality and image stability.
Additionally, the Bio-5050 provides a key feature that allows users to periodically scan the same gel film, capturing images of the sample at different time points. This results in a continuous series of images showing changes in the sample over time, making it a valuable tool for further time-series analysis and biological research.
In the field of biotechnology, the high efficiency and stability of the Bio-5050 position it as an ideal choice, making it an indispensable component in the digitalization process of electrophoresis experiments.
Features
- A high optical resolution of 4800 dpi (5 um) ensures clear and detailed image visibility
- The wide optical density range from 0.01D to 3.4D prevents the loss of critical images
- A CV value of 0.5% guarantees high image stability, making it suitable for quantitative analysis
- Automatic focusing ensures the best scanning quality
- Dual-scan beds support the scanning of gels, transparent films, and reflective material
- A uniquely designed removable leak-free glass tray is suitable for use with both dry and wet gels
- The capability to repeatedly scan the same sample to monitor its changes, facilitating research, analysis, and comparisons.
Specifications
Optical Resolution：4800 dpi (5 um)
Image Sensor Type：CCD
Light Source：LED
Color Modes：8-bit/16-bit grayscale, 8-bit/16-bit RGB color
Scanning Area：Reflective: 8.5" x 14" (216 x 356 mm); Transparency: 8" X 10" (203 x 254 mm)
Scanning Speed：Reflective: <=37 sec @600 dpi; Transparency: <=35 sec @600 dpi
Optical Density Range：0.01D ~ 3.4D (Dmax 3.77)
Consistency：CV (Coefficient of Variation): 0.5% @1D, 1% @2D; R (Relative Range): 1% @1D, 2% @2D
Dimensions：22.3" x 15.2" x 6.2" (567 x 385 x 158 mm)
Weight：26.5 lbs. (12 kg)
OS Support：Windows
