4U IPC System
Item No.: | R451 |
Supplier Details
Country: Taiwan
City: New Taipei
Address: 10F-1, No. 18, Lane 609, Sec.5, Chung Hsin Rd., San Chung District
TEL: +886-2-77165168
Fax: +--
Online Showroom:
30 Products

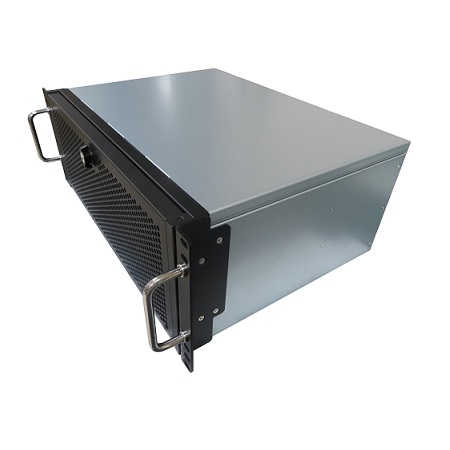

This short custom 4U chassis(326mm depth only) supports 8 x hot-swappable HDDs with RAID card adopted mini-ITX motherboard and some creative design. Ashinne assembled the whole system including RAID card for the client.
Application: Industrial PC
Key Features:
Short chassis supports 8 x hot-swappable HDD
Support mini-ITX MB
Dust filter sponge on front panel
1 x PCIe x16 expansion slot for RAID card.
PS/2 size ATX PSU
Spec:
Chassis Material: SGCC Sheet Metal
Form Factor: 4U Rackmount with mini-ITX MB
Power Supply: PS/2 Size ATX PSU
Drive Capacity: 8 x 3.5“ Hot-Swappable HDD
Expansion Slot: 1 x PCIe x16 card
Cooling Fan: 2 x 80*80*25mm Fan
LED Indicator: Power on, HDD, System Status
Button: Power, Reset, Mute
Dimension(DxWxH): 326 x 430 x 176mm
Application: Industrial PC
Key Features:
Short chassis supports 8 x hot-swappable HDD
Support mini-ITX MB
Dust filter sponge on front panel
1 x PCIe x16 expansion slot for RAID card.
PS/2 size ATX PSU
Spec:
Chassis Material: SGCC Sheet Metal
Form Factor: 4U Rackmount with mini-ITX MB
Power Supply: PS/2 Size ATX PSU
Drive Capacity: 8 x 3.5“ Hot-Swappable HDD
Expansion Slot: 1 x PCIe x16 card
Cooling Fan: 2 x 80*80*25mm Fan
LED Indicator: Power on, HDD, System Status
Button: Power, Reset, Mute
Dimension(DxWxH): 326 x 430 x 176mm
