Industrial Pressure Gauges - 414.12

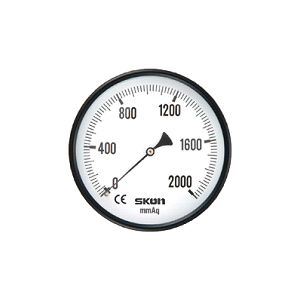

Industrial Pressure Gauges

Item No.: 414.12
Supplier Details
Country: Taiwan
City: Taichung City 412
Address: No.10, Siyu St., Dali Dist
TEL: +886-4-24936966
Fax: +886-4-24936559
Online Showroom: 76 Products
The repair of pressure guage should leave to skilled staff. Generally, pressure guages will not require any maintainance. These instruments may only be repaired by the manufacturer.

For low and negative pressure measurements on clean and non corrosive gases.
Convenient for measuring gas circuits or pharmaceutical equipments.

Product Specifications
Dimension63mm,75mm,100mm
Accuracy63mm    class ± 2.5 %
75mm    class ± 1.5 %
100mm  class ± 1.5 %
Pressure Range-300 mm Aq Vac to 5000 mm Aq
Operating TemperatureWorking temperature 60
Ambient: -20
60
ConnectionBrass Alloy
Mounting: LBM/CBM
63mm thread: 14mm
75, 100mm thread: 17mm
1/4'', 3/8'', 1/2'', NPT, BSPT, BSP
Sensing ElementBrass alloy diaphragms
When pressure is supplied to one side of the diaphragm, the degree of flexing
becomes a measure for the pressure
MovementBrass alloy
DialAluminium in white & lettering in black
PointerAluminium in black
CaseStamped sheet steel
-Black phosphated and painted
-or anodized by customise finish
Upper RingSteel
-Black phosphated and painted
-or anodized by cusomised finish
WindowGlass or PC
Order Options1. Front or rear flange
2. Adjustable red mark pointer

We have been successful in establishing our brand and sale to the international market due to our excellent quality and service of

Industrial Pressure Gauges

. Delivering the best quality products conforming to the cultural needs of the client is the ultimate goal of us.
