Micro Pressure Gauges - 411.52

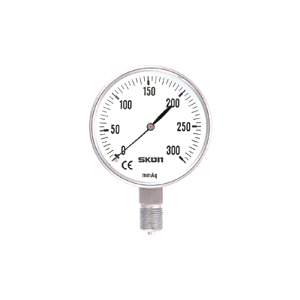

Micro Pressure Gauges

Item No.: 411.52
Supplier Details
Country: Taiwan
City: Taichung City 412
Address: No.10, Siyu St., Dali Dist
TEL: +886-4-24936966
Fax: +886-4-24936559
Online Showroom: 76 Products
When using hazardous pressure media, for example, oxygen, acetylene, combustible substances, toxic substance, as well as refrigeration units, compressors etc. the applicable regulations must be observed. Fluid filled pressure gauges must be equipped with blow-out devices.

For low and negative pressure measurements on clean and non corrosive gases.
Convenient for measuring gas circuits or pharmaceutical equipments.

Product Specifications
Dimension63mm,75mm,100mm
Accuracy63mm    class ± 2.5 %
75mm    class ± 1.5 %
100mm   class ± 1.5 %
Pressure Range -200 mm Aq Vac to 5000 mm Aq
Operating TemperatureWorking temperature 60 Max.
Ambient: -20
60
ConnectionBrass Alloy
Mounting: LBM/CBM
63mm thread: 13mm
75, 100mm thread: 17mm
1/4'', 3/8'', 1/2'', NPT, BSPT, BSP
Sensing ElementBrass alloy diaphragms
When pressure is supplied to one side of the diaphragm, the degree of flexing
MovementBrass alloy
DialAluminium in white & lettering in black
PointerAluminium in black
CaseStamped sheet steel:
-Black phosphated and painted
-or Anodized by customise finish
Upper RingSteel
-Black phosphated and painted
-or anodized by customise finish
WindowGlass or PC
Order Options1. Front or rear flange
2. Adjustable red mark pointer (Max. or set pointer)

We have been successful in establishing our brand and sale to the international market due to our excellent quality and service of

Micro Pressure Gauges

. Delivering the best quality products conforming to the cultural needs of the client is the ultimate goal of us.
