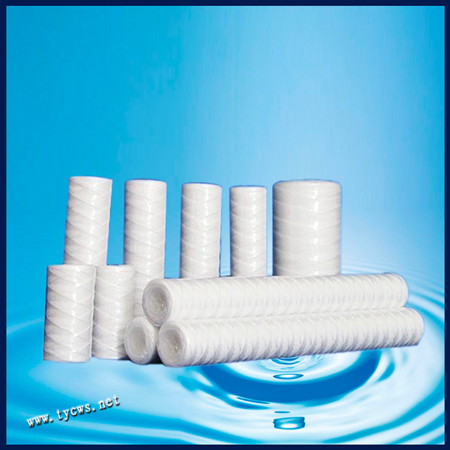

String Wound Filter Cartridge  is a kind of excellent sealing deep filter element, it is made of textile fiber, according to the specific process, tightly wrapped in porous skeleton, form a thin dense honeycomb structure, has the very good filter characteristics, can effectively remove the suspended solids in the fluid, rust, grain and other impurities.

Production detail:
Material: PP, cotton wool and glass fiber.
Commonly used filter length: 10", 20", 30", 40", such as arbitrary length can be cut.
Commonly used filtering precision: 1(including 10(including 50 (including etc.
Commonly used filter diameter: 50, 55, 60, 63, 65, 115mm can be arbitrary processing.
Commonly used filter used filter inside diameter: 20mm, 28mm, 30mm.
Applicable pH: 1-13
Maximum differential pressure: Is 0.4MPa
Several kinds of commonly used specifications:
With skeleton------filter hole have PP skeleton or stainless steel frame, the support and protection...
Big fat------filter diameter is very big, is115mm.
Take cover socket type-------the end of the filter element has the the end cover, for the socket type,
The diameter of the pins are various sizes. According to customers special requirements.
Test flow: 10"(including 1-17L/min, 10"5-25L/MIN, 10"25-28L/min
Using the temperature 5 centigrade to 120 centigrade
Quality: The company there is no thread wound filter in appearance fall off! Can apply to the needs of the filter have high quality requirement of PCB industry. Is the highest quality level of the PCB industry filter.

Area of application:
1. The pharmaceutical industry: All kinds of injection, liquid medicine and injection of washing bottle water filtration, large and various kinds of antibiotics, TCM injections of pre filtering.
2. Food industry, wine beverage, water filtration.
3. The electronics industry: Pure water ultrapure water filter.
4. Oil and chemical industry: All kinds of acid, alkali, filter oil field water injection filter.
