3U 12HDD Back-to-Back Storage Server Chassis
Item No.: | R303 |
Supplier Details
Country: Taiwan
City: New Taipei
Address: 10F-1, No. 18, Lane 609, Sec.5, Chung Hsin Rd., San Chung District
TEL: +886-2-77165168
Fax: +--
Online Showroom:
30 Products

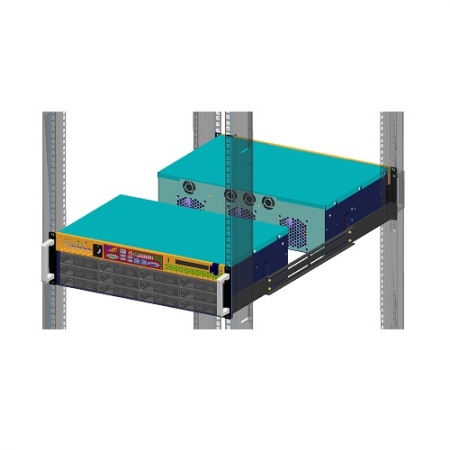

This customized 3U chassis supports back-to-back installation by custom holding brackets.
Application: Storage Server
Key Features:
3U server chassis designed for back-to-back installation
1U space for MB and PSU
2U space for 12 x 3.5” hot-swappable HDD
1 x PCIe x16 expansion slot
1U ATX PSU
Spec:
Chassis Material: SGCC Sheet Metal
Form Factor: 3U Rackmount with ATX MB
Power Supply: 1U ATX PSU
Drive Capacity: 12 x 3.5" Hot-Swappable HDD
Expansion Slot: 1 x PCIe x16 Card
Cooling Fan: 3 x 80*80*25mm Fan,4 x 40*40*28mm Fan
LED Indicator: Power on, HDD, Fan Status
Button: Power, Reset, Mute
Dimension(DxWxH): 298 x 444 x 131mm
Application: Storage Server
