Introduction
Easily use to open door.
Authenticated by Caller ID of mobile or fixed line
100 users available
2 Relay outputs
Suitable for WCDMA network

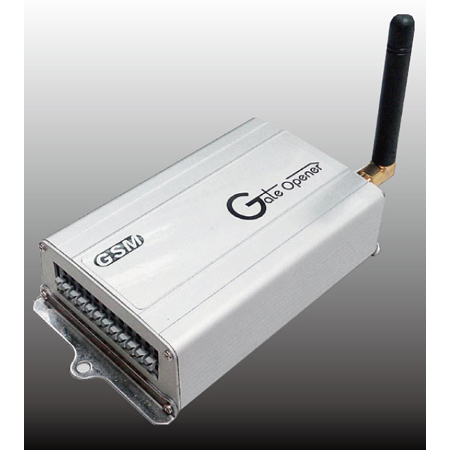

3G Door Opener is a WCDMA remote access control system which can activate electronic door locks from your mobile phone and the call is free charge. The device recognizes incoming Caller ID and drop the call then activates the on-board relay to open the doors or gates. The users' phone numbers are programmed into the device by SMS or Call. With this system you can authorize up to 100 mobile phones to open the gate without cost. This model supports two Relay outputs so you can remote control two individual doors via the command.

Specification

Power supply	AC or DC 12V-24V/1A
Power consumption	12V input Max. 50mA/Average 50mA
Band Frequency	3G Quad bands 850/1900 MHz
SIM Card	Supporting 3V SIM Card
Relay Rating	10A/240VAC
Antenna	50 Ω SMA Antenna interface
Temperature range	-20-+60°C
Humidity range	Relative humidity 90% (condensation free)
Exterior dimension	90mm*60mm*27mm
Net Weight	300g
