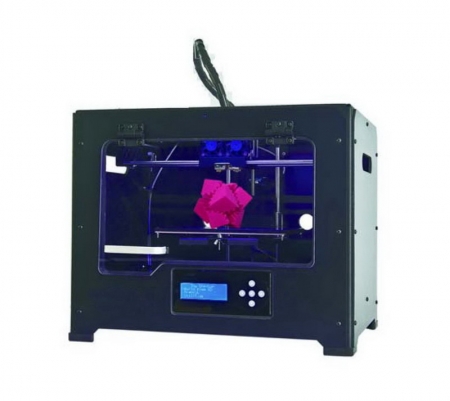

3D Printer
| Item No.: | ECKI3D01 |
Supplier Details
Country: Taiwan
City: NEW TAIPEI CITY
Address: 3F., NO.1, LANE 130, MINCYUAN RD., XINDIAN DIST., NEW TAIPEI CITY 231, TAIWAN (R.O.C.)
TEL: +886-2-86675555
Fax: +--
Online Showroom:
100 Products
Equipped with two
nozzles: one nozzle is to print the main object, and the other one is to print
the supporting object.
The heating platform is made of high-density alloy. The thickness of the platform is6.35 mm, and can be evenly heated.
***Software
Software included: ReplicatorG
Compatible 3D files: STL, and GCODE
Compatibility: Linux, Windows , and Mac OSX
***Temperature
Heating plate temperature:120℃(According to the working environment temperature, it needs to be adjusted)
Nozzle temperature: 90-230℃
***Printing
Printing technology: FFF (Fused Filament Fabrication)
Build volume: Φ225 x 145 x150 mm
Layer thickness: 0.1 - 0.5 mm
Material: Φ1.75 mm PLA
Maximum speed: 40-100 mm/s
Nozzle velocity of flow: 24cc/hr
***Mechanical
ABS, PLA, PVA, flexible filament, dissolvable filament
Material: Φ1.7-1.8 mm
Positioning precision: Z. axis:0.0025 mmX.Y axis:0.011 mm
***Electrical
Connectivity: USB, SD card
The heating platform is made of high-density alloy. The thickness of the platform is6.35 mm, and can be evenly heated.
***Software
Software included: ReplicatorG
Compatible 3D files: STL, and GCODE
Compatibility: Linux, Windows , and Mac OSX
***Temperature
Heating plate temperature:120℃(According to the working environment temperature, it needs to be adjusted)
Nozzle temperature: 90-230℃
***Printing
Printing technology: FFF (Fused Filament Fabrication)
Build volume: Φ225 x 145 x150 mm
Layer thickness: 0.1 - 0.5 mm
Material: Φ1.75 mm PLA
Maximum speed: 40-100 mm/s
Nozzle velocity of flow: 24cc/hr
***Mechanical
ABS, PLA, PVA, flexible filament, dissolvable filament
Material: Φ1.7-1.8 mm
Positioning precision: Z. axis:0.0025 mmX.Y axis:0.011 mm
***Electrical
Connectivity: USB, SD card
