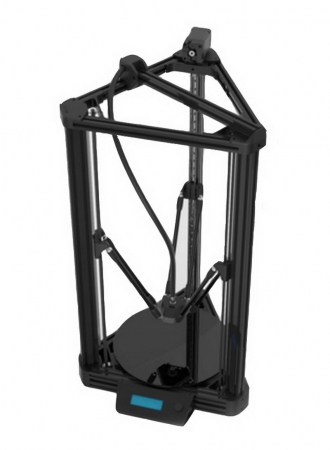

3D PRINTER
| Item No.: | ECAT3D2 |
Supplier Details
Country: Taiwan
City: NEW TAIPEI CITY
Address: 3F., NO.1, LANE 130, MINCYUAN RD., XINDIAN DIST., NEW TAIPEI CITY 231, TAIWAN (R.O.C.)
TEL: +886-2-86675555
Fax: +--
Online Showroom:
100 Products
***Super precise and consistent
extrusion
The essense of a good print is a smooth, equally thick extrusion that is at the right temperature for bonding.
We’ve re-designed the entire hot end assembly from the ground up and custom built our parts so they can fit together seamlessly to provide a super consistent extrusion of filament. The hot end is CNC milled from titanium and, paired with the custom aluminum heatsink, ensures that the heating stays in a very localized area for better temperature control and better preservation of filament integrity.
***Print super fine layers
With various conditions and factors meticulously controlled, ECAT3D2 can print extremely thin layers, so thin that the layers are almost indistinguishable by the eye.
***Automatic correction
Introducing an innovative nozzle auto-correction feature, which ensures the accuracy of every production.
***Simple and smart
Every aspect and every detail have been designed, validated, and modified again and again.
***Magnet-made joint
A special magnet-made joint to replace a general biaxial joint or spherical joint, reducing greatly the friction and printing errors.
***Printable for large size
The diameter of the chassis is 21 cm. The height of production can be 31 cm. Using the least desk space to create maximum production efficiency.
***Specifications
Physical Dimensions
Outline dimensions: 420 (W) x 420 (D) x 760 (H) mm
Material coil: 20 x 20 x7 cm
Weight:13 kg
Software
Software included: Repetier Host, Kisslicer, and Cura
Compatible 3D files: STL, OBJ, GCODE
Compatibility: Windows XP and above; Mac OSX 10.6 and above
Temperature
Working temperature: Room temperature
Storage temperature: 0-35℃
PLA temperature:200℃
Heating time under 20-300 ℃: 60 seconds
Printing
Printing technology: FFF (Fused Filament Fabrication)
Build volume: Φ22 x 32 cm
Layer thickness: min 0.05 mm/ max 0.3 mm
Material: Φ1.75 mm PLA
Maximum speed: print 100 mm/s , move 200 mm/s
Mechanical
Structure: 2020/2040 aluminum extrusion
Main parts: 3D print PLA
Print platform: glass
Stepper motors: NEMA17 1.8° step angle, 1/16 micro-stepping
Electrical
AC power: 100-240V
Electricity demand: 12V DC @ 5 amps
Connectivity:USB,SDcard
