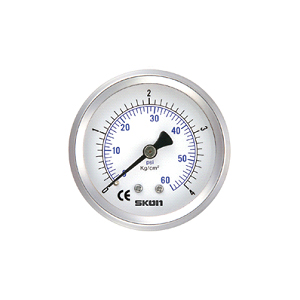

Filled Pressure Gauge
Item No.: | 324.12 |
Supplier Details
Country: Taiwan
City: Taichung City 412
Address: No.10, Siyu St., Dali Dist
TEL: +886-4-24936966
Fax: +886-4-24936559

Online Showroom:
76 Products
The Manufacturer provides one year of warranty for compliance of goods. In case of defective goods being claimed, Distributor / Suppliers are to fax a copy of claim document & description of compliance failure to the Manufacturer within three days after checking. Once the Manufacturer agrees to investigate the claim, Distributor / Suppliers can then send the defective parts by prepaid postage back to the Manufacturer.
For gases, pressurized gases (oxygen, air ect.) and low viscosity liquids up to 60 degrees celcius, with liquid filling for measurement points subject to vibrations and high dynamic pressure loads, no formation of condensation.
Product Specifications
For gases, pressurized gases (oxygen, air ect.) and low viscosity liquids up to 60 degrees celcius, with liquid filling for measurement points subject to vibrations and high dynamic pressure loads, no formation of condensation.
Product Specifications
Dimension | 63mm |
Accuracy | Class ± 1.5% |
Pressure Range | -1/0 to -1/+20 kg/cm² (bar) 0/1 to 0/1000 kg/cm² (bar) |
Operating Temperature | Working temperature: 60℃ Ambient: -25℃ ~60℃ |
Connection | Brass Alloy, LM/LBM/CBM Connector Size:14mm 1/4'', PT, NPT, PF, BSP |
Sensing Element | Bourdon Tube, brass alloy < 70kg/cm² (bar) Coil ≧ 70kg/cm² (bar) Helicoil |
Movement | Brass alloy |
Dial | Aluminium in white and lettering in black |
Pointer | Aluminium in black |
Case | AISI 304 |
Upper Ring | AISI 304 |
Filling | Glycerin (99.5%) |
Window | -Normal glass -Laminated safety glass -PC |
Order Options | 1. Filling fluid optional 2. Flange option 3. Red mark pointer 4. Clamp fixations |
