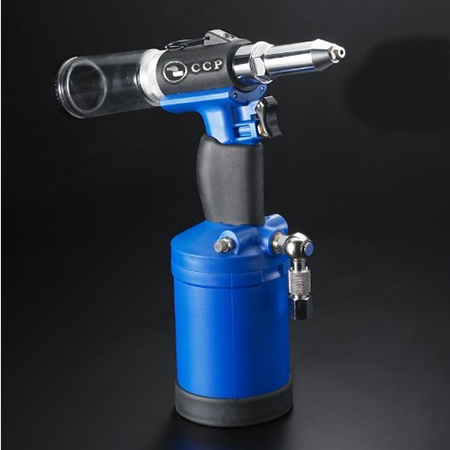

Air Pop Riveter
| Item No.: | CCP-240A |
Supplier Details
Country: Taiwan
City: New Taipei City 221
Address: No.159, Sec. 2, Datong Rd., Xizhi Dist.
TEL: +886-2-86926800
Fax: +886-2-86926804
Online Showroom:
39 Products
This tough and flexible hydraulic riveting machine is suitable for general applications such as chassis assembly, vehicle maintenance.
Lightweight and ergonomically designed easy operation and maintenance.
Vacuum system with an integrated design. Manual air adjuster for vacuum and air consumption control.
Its ergonomic design and reinforced structure make the CCP tool easy to use yet tough enough to endure any assembly line.
Brand-new technology, have low recoil of shock-less, can reduce part of tools wear, and the can reduce operator is tired.
Lightweight and ergonomically designed easy operation and maintenance.
Vacuum system with an integrated design. Manual air adjuster for vacuum and air consumption control.
Its ergonomic design and reinforced structure make the CCP tool easy to use yet tough enough to endure any assembly line.
Brand-new technology, have low recoil of shock-less, can reduce part of tools wear, and the can reduce operator is tired.
| Specifications | Country of Origin: Taiwan Work Capacity: for setting standard rivets 2.4 ~ 4.8 mm (3/32 ~ 3/16 inch) in all materials Stroke: 19.5 mm (0.768 inch) Working Air Pressure: 85 ~ 90 PSI (6 – 6.3 kg/cm2) Traction Power: 2400 lbs (1089kg) Nosepieces: 3/16, 5/32, 1/8, 3/32 inch (4.8, 4.0, 3.2, 2.4mm) Vacuum: Yes Tool Weight: 1.87 kg Height: 301 mm Length of Placing Head: 290 mm Base Diameter: 88.6 mm Safety/Quality Approvals: ISO9001; CE Sales Method: Export, Manufacture, OEM/ODM |
