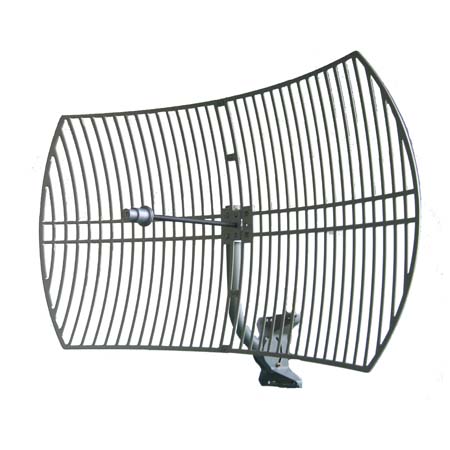

30dbi Grid Antenna - AT-GR5830F

30dbi Grid Antenna

Item No.: AT-GR5830F
Supplier Details
IP Cameras
Country: Taiwan
City: Taipei City
Address: 1.No.6, Ln.18, Mincyuan E.Rd., Nu Dist.
TEL: +886-2-87922356
Fax: +886-2-87922546
Online Showroom: 42 Products
Features:
1. Superior Performance
2. Light weight
3. All weather operation
4. Installed by vertical

Technical Specification:
Model No.AT-GR5830F
Frequency Range 5725 ~ 5850MHz
V.S.W.R.<= 1.5
Gain (dBi)30dBi
Bandwidth125MHz
F/B Ratio>30dB
Impedance50Ω
PolarizationVertical or Horizontal
Horizontal Beam-with4°
Vertical Beam-with6°
Maximum Power100W
ConnectorN - Female
Mechanical Specification:
Length900mm
Diameter700mm
Weight5500g
Wind Survival>150MPH
Rated Wind Velocity60m/s
Temperature -40°C ~ +85°C
RoHS CompliantYes

We have been successful in establishing our brand and sale to the international market due to our excellent quality and service of

30dbi Grid Antenna

. Delivering the best quality products conforming to the cultural needs of the client is the ultimate goal of us.
