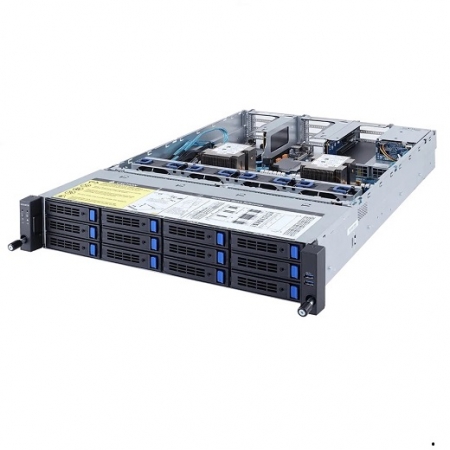

2U Server System with 14HDDs and 10 expansion slot
Item No.: | R281-3C1 |
Supplier Details
Country: Taiwan
City: New Taipei
Address: 10F-1, No. 18, Lane 609, Sec.5, Chung Hsin Rd., San Chung District
TEL: +886-2-77165168
Fax: +--

Online Showroom:
30 Products
Ashinne adopted the off-the-shelf server barebone to build the custom system for a client by CTO (Configure to order) production model. After assembling and testing the system, the client would do the final test and OS/SW installation remotely. This system is directly delivered to worldwide end customers per client’s request.
Application: Storage Server, Network Server, Packet Capture
Key Features:
Dual 1st and 2nd Gen. Intel Xeon scalable processor
12 x 3.5" hot-swappable HDD
2 x 2.5" hot-swappable HDD(at rear panel)
8 x PCIe Gen3 expansion slot
2 x OCP Gen3 x16 mezzanine slot
1+1 1200W 80 PLUS platinum redundant PSU
Form Factor: 2U Rackmount with Proprietary MB
Spec:
Chassis Material: SGCC Sheet Metal
Form Factor: 2U Rackmount with Proprietary MB
CPU: Dual 1st and 2nd Gen. Intel Xeon Scalable Processor
Power Supply: 1+1 1200W 80 PLUS Platinum Redundant PSU
Drive Capacity: 12 x 3.5“ Hot-Swappable HDD
;2 x 2.5" Hot-Swappable HDD(at Real Panel)
Expansion Slot: 2 x PCIe x16 slot (Gen3 x16 or x8), Full-Height/Half-Length
2 x PCIe x8 slots (Gen3 x0 or x8), Full-Height/Half-Length
2 x PCIe x8 slots (Gen3 x8), Full-Height/Half-Length
1 x PCIe x8 slots (Gen3 x0 or x8), Low-Profile/Half-Length
1 x PCIe x16 slot (Gen3 x16 or x8), Low-Profile/Half-Length
2 x PCIe x16 OCP Mezzanine Slot (Gen3 x16)
Cooling Fan: 8 x 40*40*56mm Fan
LED Indicator: Power on, HDD, 2x LAN, ID, System Status
Button: Power, Reset, ID, NMI
Dimension(DxWxH): 730 x 438 x 87.5mm
Application: Storage Server, Network Server, Packet Capture
Key Features:
Dual 1st and 2nd Gen. Intel Xeon scalable processor
12 x 3.5" hot-swappable HDD
2 x 2.5" hot-swappable HDD(at rear panel)
8 x PCIe Gen3 expansion slot
2 x OCP Gen3 x16 mezzanine slot
1+1 1200W 80 PLUS platinum redundant PSU
Form Factor: 2U Rackmount with Proprietary MB
Spec:
Chassis Material: SGCC Sheet Metal
Form Factor: 2U Rackmount with Proprietary MB
CPU: Dual 1st and 2nd Gen. Intel Xeon Scalable Processor
Power Supply: 1+1 1200W 80 PLUS Platinum Redundant PSU
Drive Capacity: 12 x 3.5“ Hot-Swappable HDD
;2 x 2.5" Hot-Swappable HDD(at Real Panel)
Expansion Slot: 2 x PCIe x16 slot (Gen3 x16 or x8), Full-Height/Half-Length
2 x PCIe x8 slots (Gen3 x0 or x8), Full-Height/Half-Length
2 x PCIe x8 slots (Gen3 x8), Full-Height/Half-Length
1 x PCIe x8 slots (Gen3 x0 or x8), Low-Profile/Half-Length
1 x PCIe x16 slot (Gen3 x16 or x8), Low-Profile/Half-Length
2 x PCIe x16 OCP Mezzanine Slot (Gen3 x16)
Cooling Fan: 8 x 40*40*56mm Fan
LED Indicator: Power on, HDD, 2x LAN, ID, System Status
Button: Power, Reset, ID, NMI
Dimension(DxWxH): 730 x 438 x 87.5mm
