2.54mm Pin Header - PH6

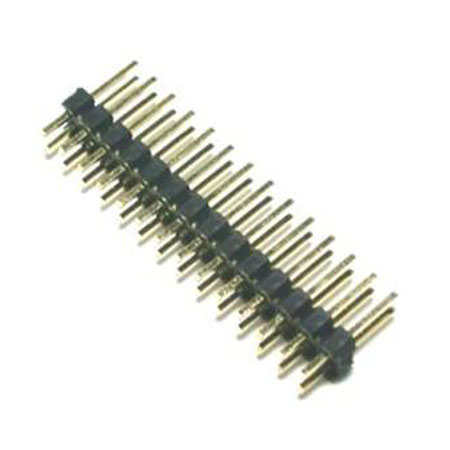

2.54mm Pin Header

Item No.: PH6
Supplier Details
Country: Taiwan
City: Xinbei
Address: San Chung District
TEL: +886-02-12332233
Fax: +886-02-12332233
Online Showroom: 86 Products
Specifications:

Good quality and competitive price
Current Rating: 1.0Amp
Insulation Resistance: 1000m Ω min
Pin type: Quad rate pin
Insulator material: PBT
ISO-TS16949 Certificate
Contact resistance: 20mΩ Max
Operating Temperature: -40° to + 105°
Dielectric Withstanding Voltage: 300V AC

MATERIALS:

Insulator Material: Polyester,UL94V-0 Nylon 6T
Contact Material: brass

We have been successful in establishing our brand and sale to the international market due to our excellent quality and service of

2.54mm Pin Header

. Delivering the best quality products conforming to the cultural needs of the client is the ultimate goal of us.
