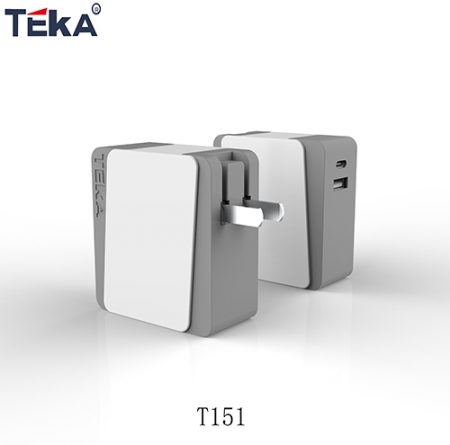

24W(Type C+QC3.0) - T151

24W(Type C+QC3.0)

Item No.: T151
Supplier Details
Country: Taiwan
City: Miaoli County
Address: No.2 Lane18,alley333 Chung cheng road Zhunan Town Miaoli County ,350 Taiwan
TEL: +886-37-466060
Fax: +886-37-460345
Online Showroom: 17 Products
INPUT SPECIFICATIONS
 Input Voltage:90~264Vac
 Input Frequency:60Hz/50Hz
 Input AC Current/AC:0.5-0.7A
 Inrush Current:30Amax


 OUTPUT SPECIFICATIONS
 QC Charger:QC3.0(5V/9V/12V)24W
 QC3.0+TYPE-C Charger:1*Type-c(5V3A)
 Turn-on Delay Time:3S
 Short Circuit Protection Ripple And Noise:120mV
 Line Regulation:±5%
 Output Regulation:±5%


 GENERAL SPECIFICATIONS
 Efficiency standard:VI
 Leakage Current:0.25mA
 MTBF:50000H
 Overvoltage protection:120%MIN
 Overcurrent protection:120%MIN
 Operating Temperature:10℃~40℃
 Storage Temperature:-20℃~+80%℃
 Humidity:5~95%RH(non-condensing)
We have been successful in establishing our brand and sale to the international market due to our excellent quality and service of

24W(Type C+QC3.0)

. Delivering the best quality products conforming to the cultural needs of the client is the ultimate goal of us.
