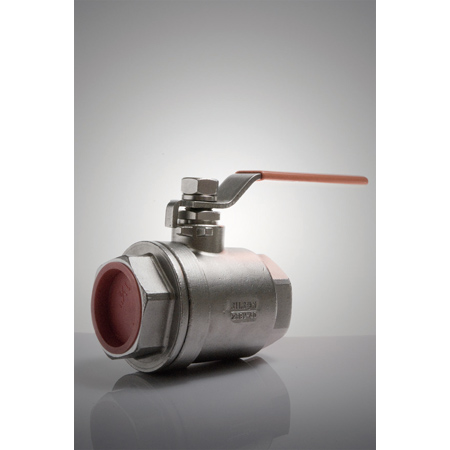

2 Pieces Stainless Steel Full Bore Female Pipe Thr
Item No.: | 2SB-316 |
Supplier Details
Country: Taiwan
State: Taiwan
City: Kaohsiung
Address: No.16,Tzu-Chi Rd.,FengShan District
TEL: +886-7-7517106
Fax: +886-7-7254797
Online Showroom:
57 Products
Working temperature and pressure:70kg/cm2/150oC(Max)
Application:For General Chemical & Transport Liquid & Gas Tank Delivery & Transport Service.
Connector:PT /NPT /BSP
Material:CF8M/CF8/CF3M (SS 316/SS304/SS316L)
Option Design: Fire Safe
Dimension List(mm)
NPS (inch):1/2 Size:50 D:13 L:69 H:60 W:132
NPS (inch):3/4 Size:75 D:19 L:78 H:60 W:132
NPS (inch):1 Size:100 D:25 L:88 H:65 W:145
NPS (inch):1-1/4 Size:125 D:32 L:100 H:84 W:145
NPS (inch):1-1/2 Size:150 D:38 L:112 H:96 W:203
NPS (inch):2 Size:200 D:50 L:132 H:102 W:203
NPS (inch):2-1/2 Size:250 D:65 L:158 H:132 W:251
Material List
1. Part Name:Body Material:CF8M/8 Quantity:1 Remarks:Pure
2. Part Name:Gasket Material:PTFE Quantity:1 Remarks:White
3. Part Name:Ball Seat Material:PTFE Quantity:2 Remarks:White
4. Part Name:Ball Material:CF8M/8 Quantity:1 Remarks:White
5. Part Name:Side Caps Material:CF8M/8 Quantity:1 Remarks:Pure
6. Part Name:Stem Material:SS316/304 Quantity:1 Remarks:Pure
7. Part Name:Stationary Bolt Material:SS304 Quantity:1 Remarks:Pure
8. Part Name:Stem Seal Material:PTFE Quantity:1 Remarks:White
9. Part Name:Thrust Washer Material:PTFE Quantity:1 Remarks:White
10. Part Name:Gland Material:SS304 Quantity:2 Remarks:Pure
11. Part Name:Handle Material:SS304 Quantity:1 Remarks:Pure
Application:For General Chemical & Transport Liquid & Gas Tank Delivery & Transport Service.
Connector:PT /NPT /BSP
Material:CF8M/CF8/CF3M (SS 316/SS304/SS316L)
Option Design: Fire Safe
Dimension List(mm)
NPS (inch):1/2 Size:50 D:13 L:69 H:60 W:132
NPS (inch):3/4 Size:75 D:19 L:78 H:60 W:132
NPS (inch):1 Size:100 D:25 L:88 H:65 W:145
NPS (inch):1-1/4 Size:125 D:32 L:100 H:84 W:145
NPS (inch):1-1/2 Size:150 D:38 L:112 H:96 W:203
NPS (inch):2 Size:200 D:50 L:132 H:102 W:203
NPS (inch):2-1/2 Size:250 D:65 L:158 H:132 W:251
Material List
1. Part Name:Body Material:CF8M/8 Quantity:1 Remarks:Pure
2. Part Name:Gasket Material:PTFE Quantity:1 Remarks:White
3. Part Name:Ball Seat Material:PTFE Quantity:2 Remarks:White
4. Part Name:Ball Material:CF8M/8 Quantity:1 Remarks:White
5. Part Name:Side Caps Material:CF8M/8 Quantity:1 Remarks:Pure
6. Part Name:Stem Material:SS316/304 Quantity:1 Remarks:Pure
7. Part Name:Stationary Bolt Material:SS304 Quantity:1 Remarks:Pure
8. Part Name:Stem Seal Material:PTFE Quantity:1 Remarks:White
9. Part Name:Thrust Washer Material:PTFE Quantity:1 Remarks:White
10. Part Name:Gland Material:SS304 Quantity:2 Remarks:Pure
11. Part Name:Handle Material:SS304 Quantity:1 Remarks:Pure
