10W COB LED Track light
| Item No.: | EW-TL-COB-10W |
Supplier Details
Country: China
City: Shenzhen
Address: Tong'an Hengye Building,NO3 of Tianxin Blvd,Shiyan Town,Baoan District,Shenzhen,China
TEL: +86-755-36863926
Fax: +86-755-82780858
Online Showroom:
30 Products

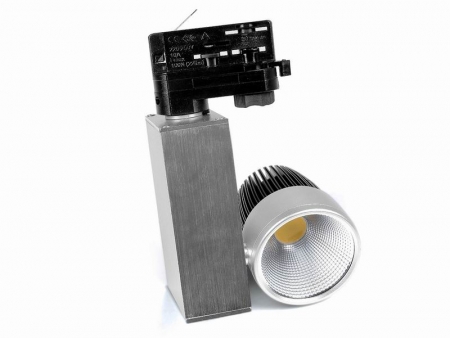

10W COB LED Track light
Products Features:
(1)LED Power: 10W.
(2)Lamp Consumption:12W.
(3)Output: 900-1100lm.
(4)Input voltage:100-240v AC, 50-60hz
(5)Beam Angle:30°/60°
(6)CRI:> 80.
(7)Working Temperature:-40℃-45℃.
(8)Storage Temperature: -25℃-65℃.
(9)Color of housing: white, black, silver.
(10)Track connecotr: 2-way, 3-way, 4-way available.
(11)Life span: 50,000+hrs.
(12)Certificate: CE/RoHS/SASO
(13)Warranty: 3 years.
COB Parameter:
(1)PCB: Ceramic.
(2)Chip Brand: Epistar 10*23.
(3)Output: 1000-1200lm.
(4)Chip Qty: 160 pcs.
(5)CRI> 82.
(6)Voltage:30-36vDC
(7)Current: 320-350mA.
Driver Parameter:
(1)Brand: Lifud (LED Friend).
(2)Input:100-277v AC.
(3)Output: 27-42vDC, 350mA.
(4)Power effect: 0.9-0.97.
(5)Power Efficiency: 85%
(6)Certificate:CE/TUV/UL/CQC/SAA
Dimmable: Triac or Dali is available.
Meanwell PLD-16-350 is optional.
